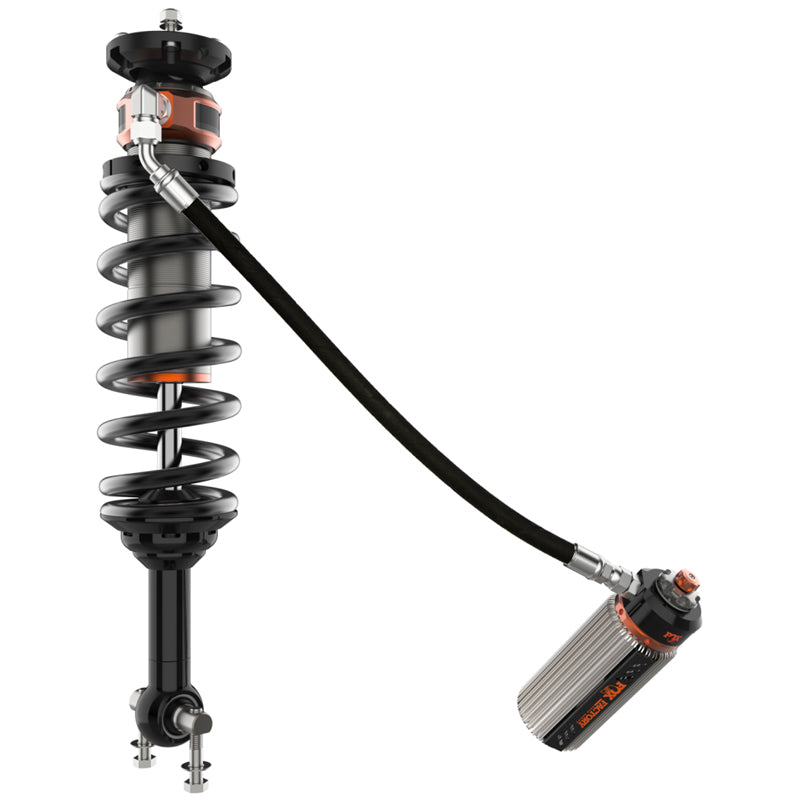

FOX Factory Race Series 3.0 Coilover Reservoir Front Shocks (Adjustable) - 2021+ Ford Bronco
Tax excluded. Shipping calculated at checkout
FOX Factory Race Series 3.0 delivers position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Experience the support and confidence you need while driving high-speed through rugged terrain.
Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.
A Recirculating Reservoir Bridge enables the continuous exchange of shock fluid between the finned external reservoir and body using a checked port, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies.
| PART NUMBER | 883-06-204 |
| FEATURES | 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body Patented, internal bypass design Application-specific springs 7/8" stainless steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal Finned reservoir, with DSC adjuster |
| SERIES | Factory Race |
| TRAVEL | 5.42 |
| FRONT LIFT HEIGHT | 3-4.5 |
| EXTENDED LENGTH | 23.44 |
| COMPRESSED LENGTH | 17.95 |
| TOP MOUNT | OEM |
| BOTTOM MOUNT | Bar Pin |
| FITMENT NOTES | Requires Upper Control Arm | Excludes Raptor submodel |
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2024 | Ford | Bronco | Badlands |
| 2021-2023 | Ford | Bronco | Base |
| 2021-2024 | Ford | Bronco | Big Bend |
| 2021-2024 | Ford | Bronco | Black Diamond |
| 2022-2024 | Ford | Bronco | Everglades |
| 2021 | Ford | Bronco | First Edition |
| 2023-2024 | Ford | Bronco | Heritage Edition |
| 2023-2024 | Ford | Bronco | Heritage Limited Edition |
| 2021-2024 | Ford | Bronco | Outer Banks |
| 2022-2024 | Ford | Bronco | Raptor |
| 2021-2024 | Ford | Bronco | Wildtrak |
