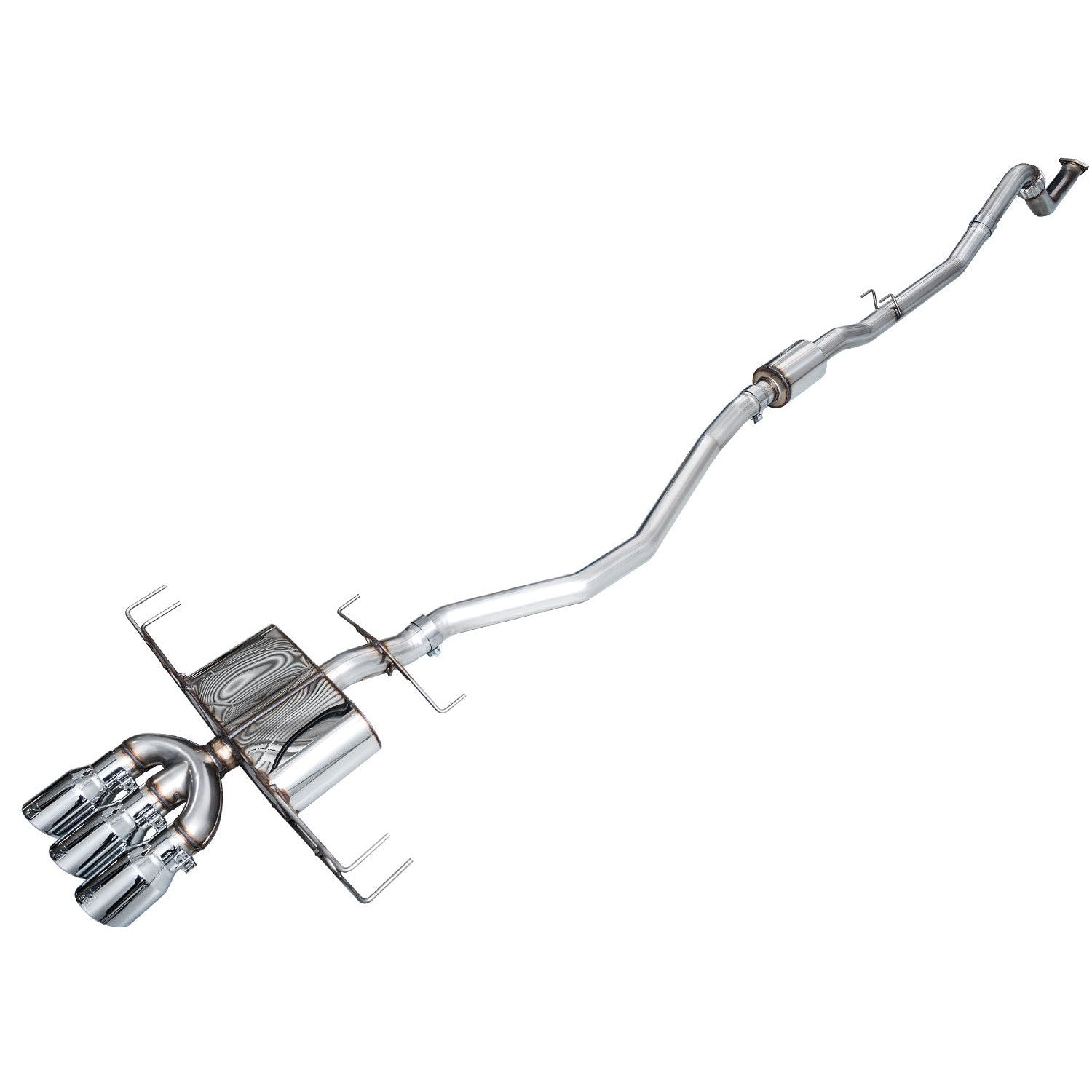

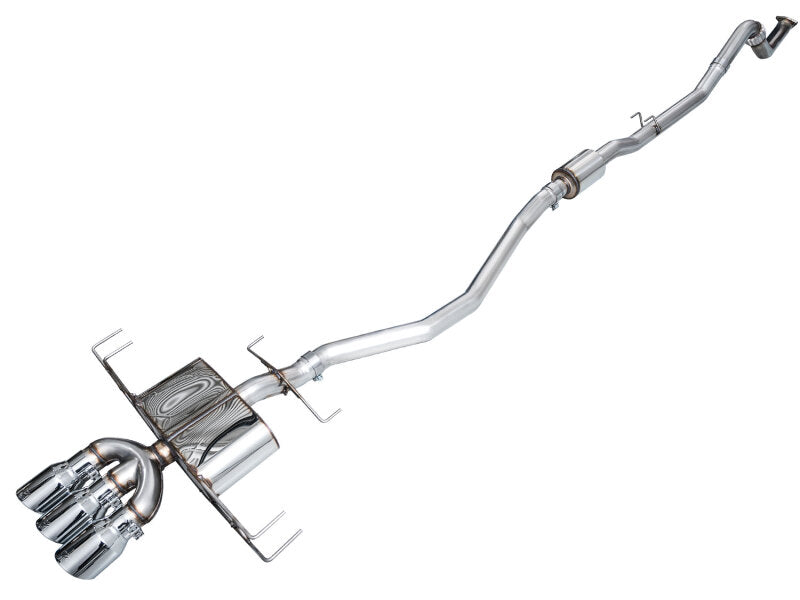

AWE Tuning Touring Edition Exhaust w/ Triple Chrome Silver Tips - 2024 Acura Integra Type S DE5

High spooler. Presenting the AWE Exhaust Suite for the Acura DE5 Integra Type S.

• Full 3” catbacks with frontpipe for the DE5 Integra Type S
• Integrated 3” frontpipe includes a unique flange and gasket on the inlet to accommodate a true 3” inch diameter from inlet to outlet while successfully mating to the factory interface
• Dyno-proven max gains of 4 hp and 6 lb-ft of torque at the wheels (stock downpipe)
• Options include Touring and Track Edition configurations
• Touring Editions feature patented drone-canceling 180 Technology®, developed with and without aftermarket catted DPs
• Handcrafted from 3” CNC mandrel-bent, U.S.-sourced .065” wall T304L stainless steel
• Straight-forward install: no motor mount removal and generous clearances
• Weights: Track Edition: 36.5 lbs, Touring Edition: 46 lbs
• Direct bolt-on for factory-like simplicity

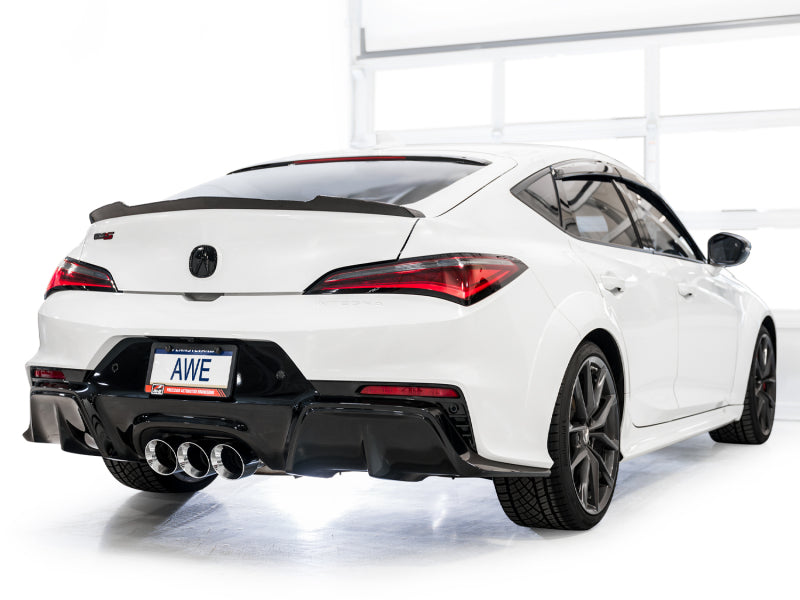

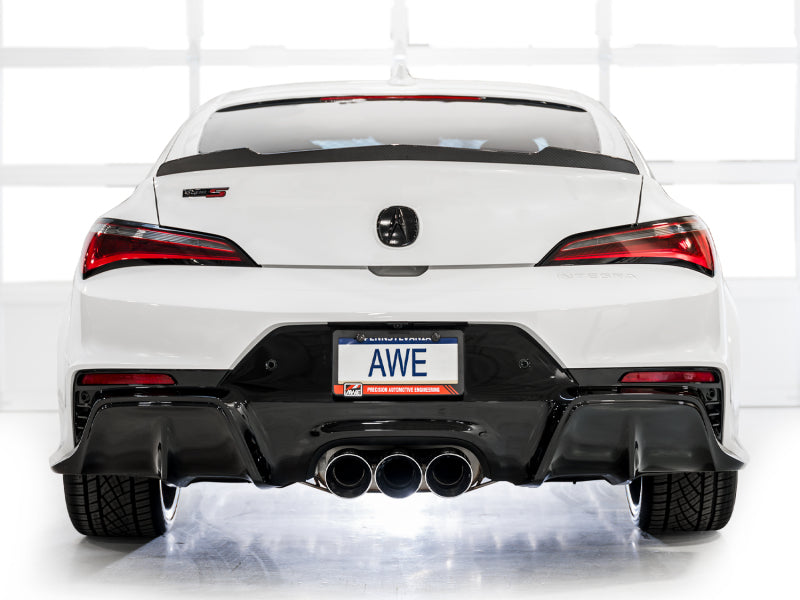

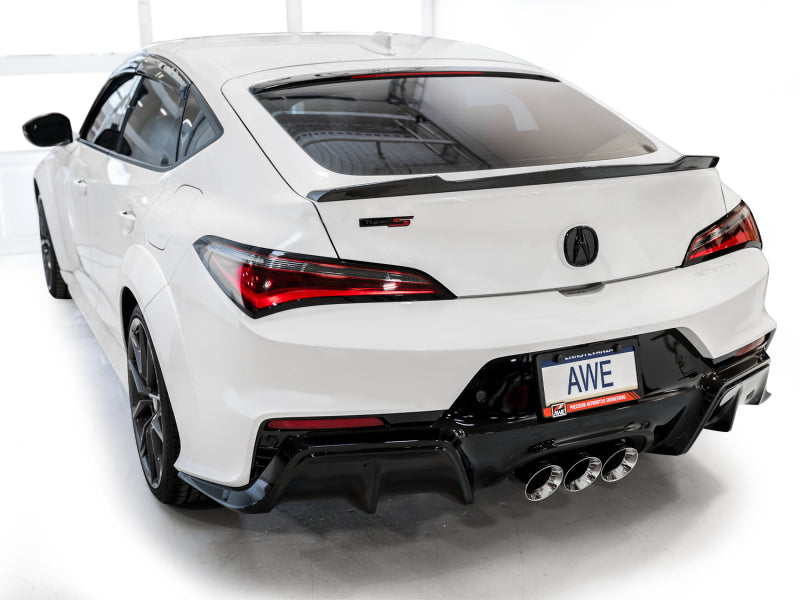

• Stamped stainless steel trident tip merge with triple 4.5" double-walled slash-cut tips available in diamond black or chrome silver
• Proudly designed, engineered, and manufactured at AWE in the USA
• Perfect fitment guaranteed
• AWE No CEL Guarantee

The options:

Front pipes:

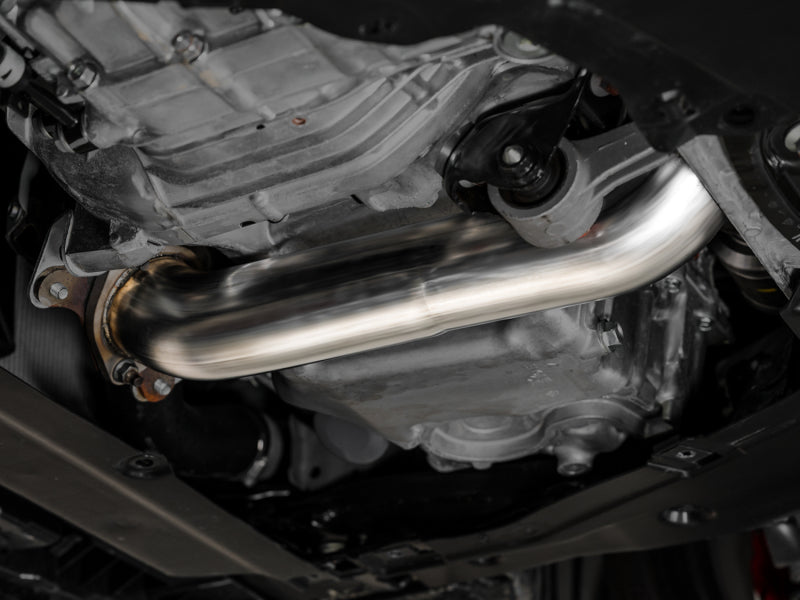

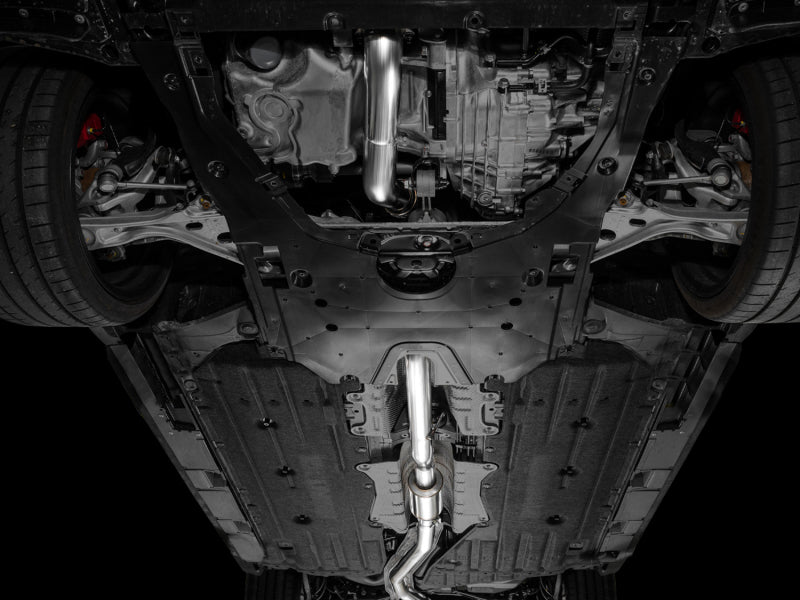

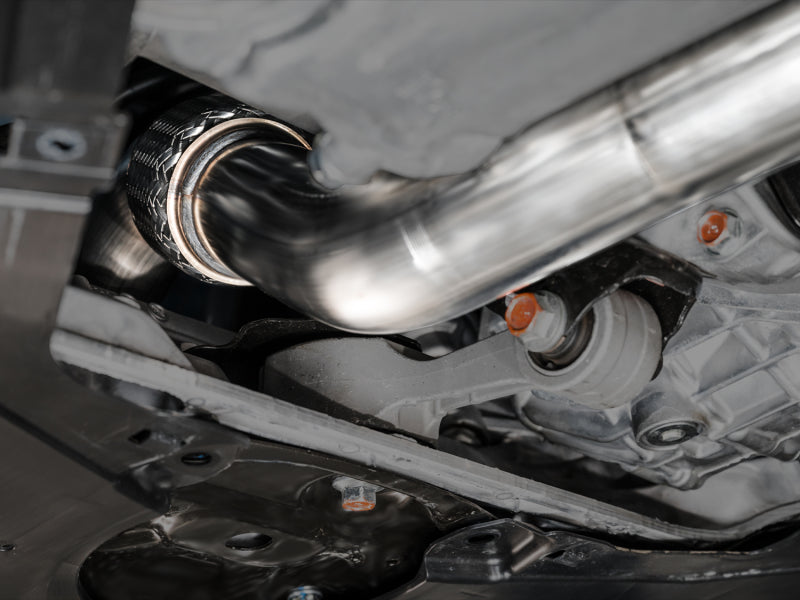

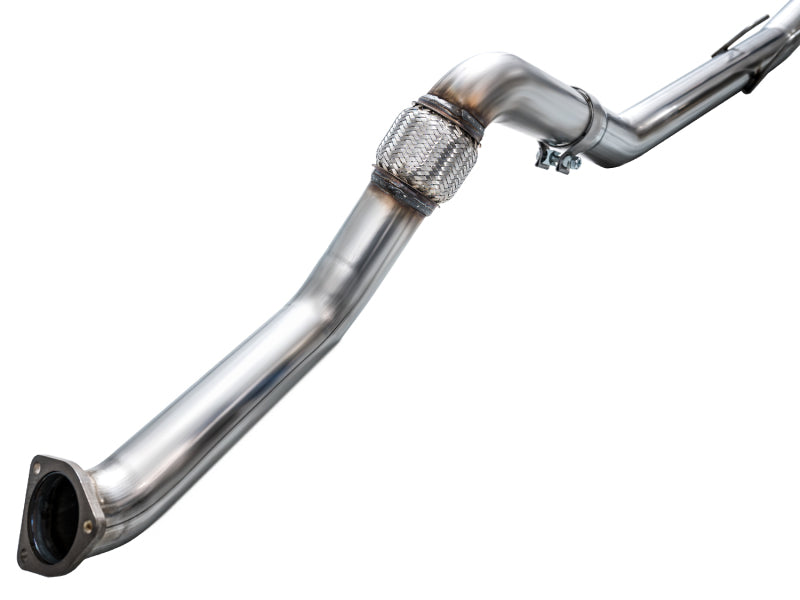

The Touring and Track Edition Exhausts include a full 3” frontpipe that is designed with a unique flange and gasket to ensure the full diameter from inlet to outlet.

This frontpipe is integrated into the design of the exhausts, and will mate to aftermarket downpipes as well as the factory downpipe.

AWE exhausts are not designed to mate with other aftermarket frontpipes.


Touring Edition Exhaust:

At the intersection of sophistication and aggression lies the Touring Edition Exhaust. A 3” T304L stainless steel downpipe-back configuration, the Touring Edition Exhaust is the perfect dose of steel for drivers looking for straight-pipe performance, a deep, sophisticated exhaust note, and zero drone at highway speeds.

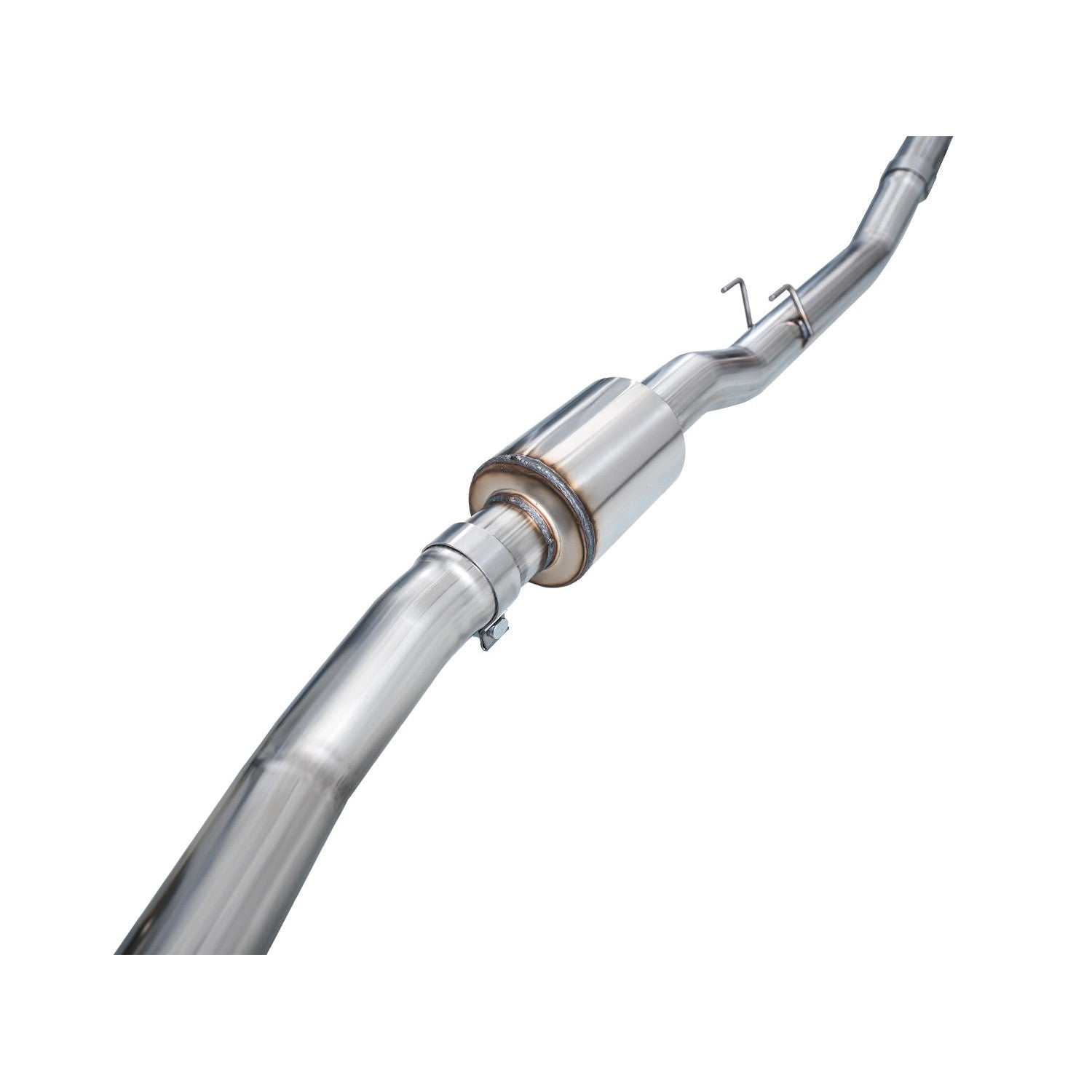

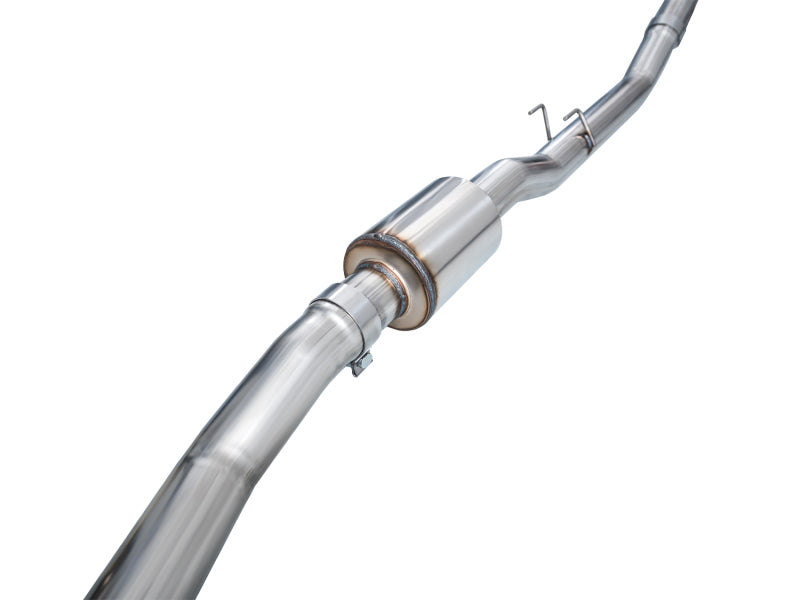

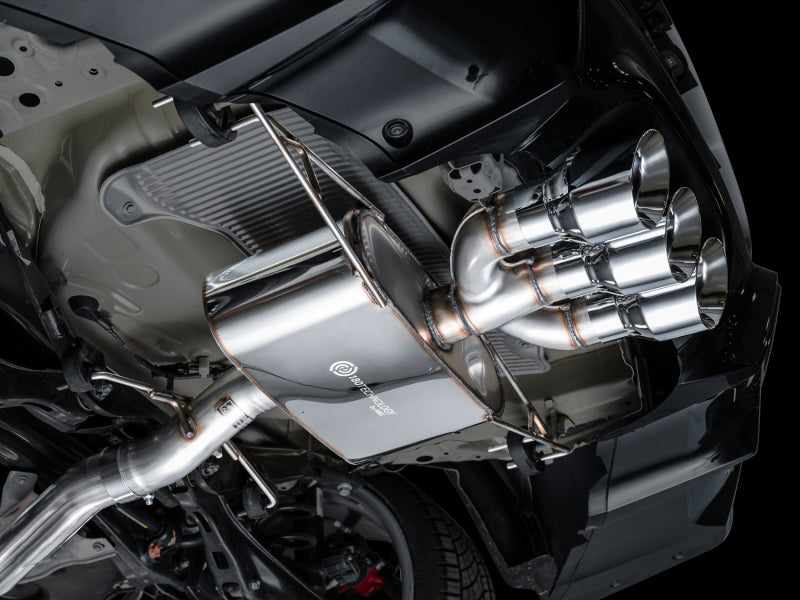

Featuring an integrated front pipe, robust midpipe resonator, thick-walled T304L stainless steel, and an iteration of AWE’s 180 Technology® bespoke for the DE5 in the rear, the Touring Edition is the do-it-all configuration for everyday drivers.

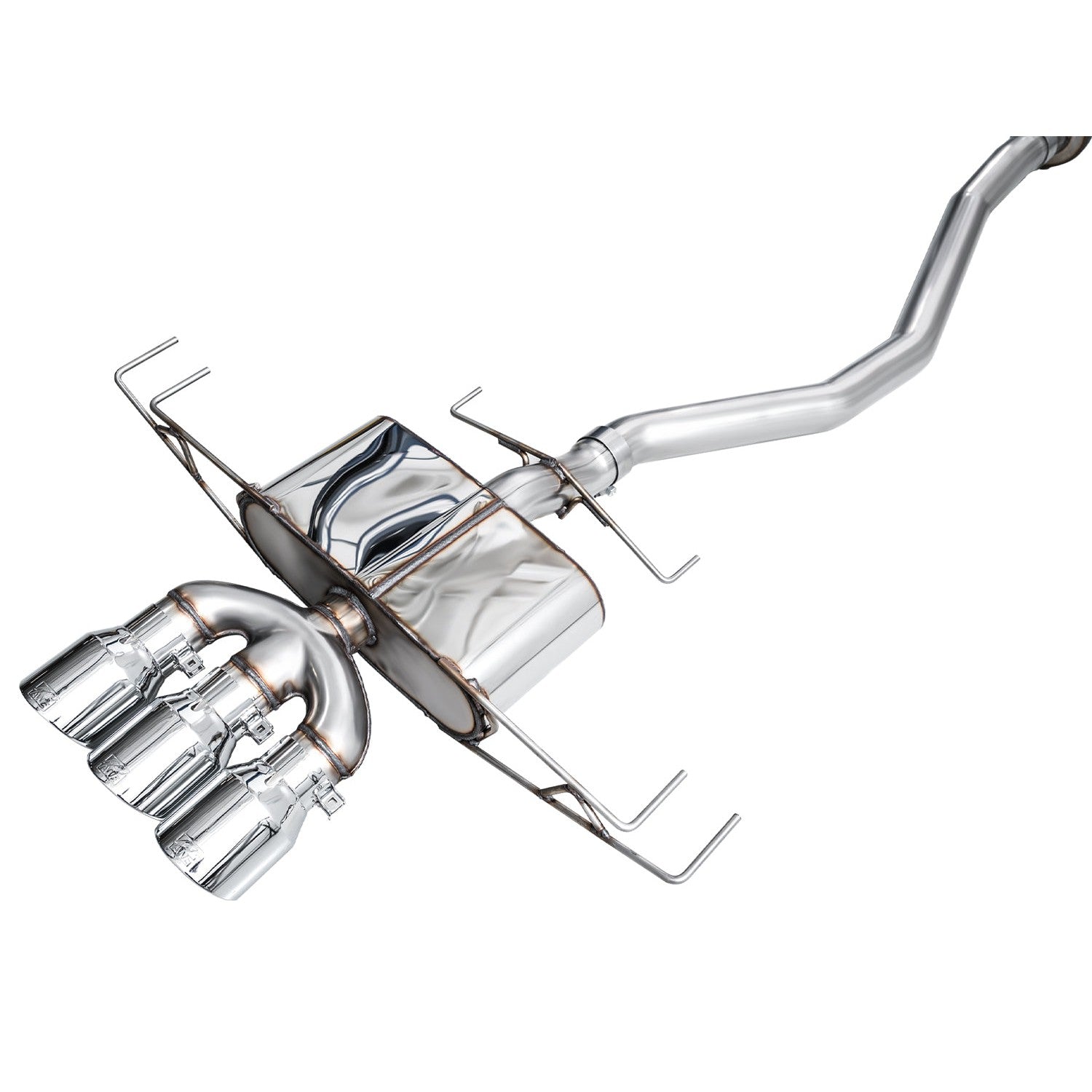

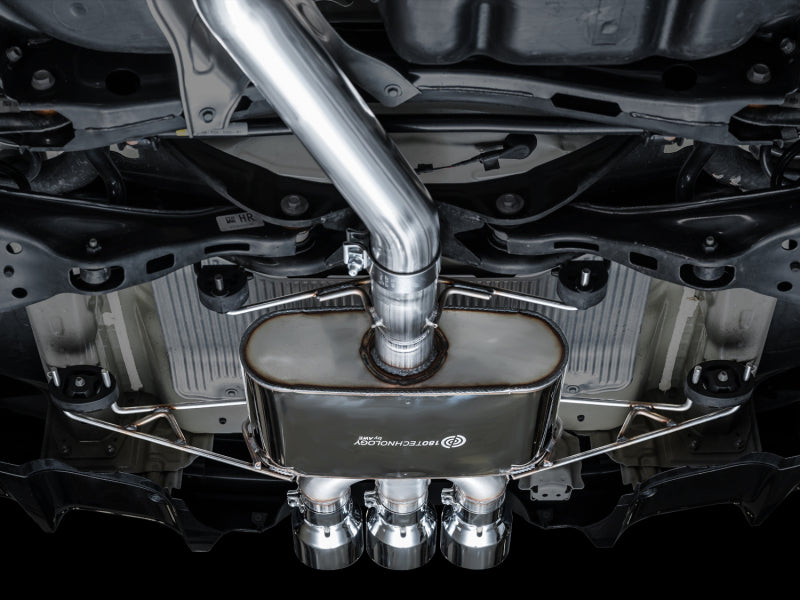

Thanks to AWE’s patented drone-canceling 180 Technology®, the Touring Edition keeps all of the commotion to the rear of the vehicle where it belongs, and destroys drone-prone frequencies that would otherwise resonate within the cabin at highways speeds – all packaged perfectly to fit the Integra.

The Touring Edition, and the 180 Technology® within it, were both developed for use with and without an aftermarket catted downpipe.

Perfect tone, compliments of AWE 180 Technology.

As exhaust gasses exit the K20 engine and flow into an AWE 180 Technology equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. All of this with a straight-through design -- in other words, all the power, none of the drone.

Track Edition Exhaust:

For those who like it raw and rowdy, the Track Edition is for you. The Track Edition shares the same integrated front pipe, robust midpipe resonator, and precision engineering as its Touring Edition counterpart, minus AWE’s patented drone-canceling 180 Technology® resonator in the rear.

In place of the 180 Technology® resonator in the rear lies a Track Edition straight section. As a result, this version is known to get rowdy in mid range acceleration/deceleration and cruising, and may be too much for some. You’ve been warned–especially with a downpipe.

Nope, they’re not valved:

During R&D, AWE conducted a (quite painstaking) full evaluation of the factory valve and its behavior under various driving conditions to determine its reason for existing.

We didn't find any noticeable change in volume between modes during R&D that demanded a valve to be included. It's only closed when in comfort mode, of which still opens upon a throttle threshold. Sport and Sport+ mode renders the valve in the open positions, and Sport+ introduces burbles from the ECU. On the stock configuration, the exhaust is routed through the side mufflers when the valve is closed to mitigate interior volume (i.e. any drone-prone frequencies), and then when it’s open, it’s sent through the center.

The benefit of our configurations–the Touring Edition in particular–renders a full, straight-through exhaust path that is sent through our 180 Tech resonator, killing drone while providing max output, regardless of the driving mode, at all times, without sounding like a vacuum. It’s the best of both worlds. Thanks to the design of our 180 Tech resonators, it’s not difficult to creep through a neighborhood without causing a ruckus. Low throttle with our Touring Edition is very civil, minus any gimmicks, just with a deeper note.

Conversion kits:

We made it easy to convert between Track and Touring Editions if you decide at a later date to change your interior volume.

Tip Options:

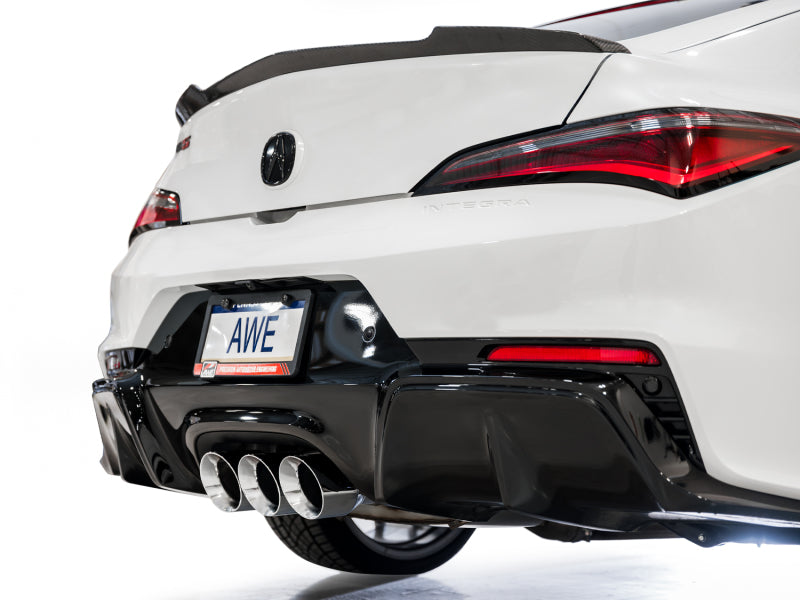

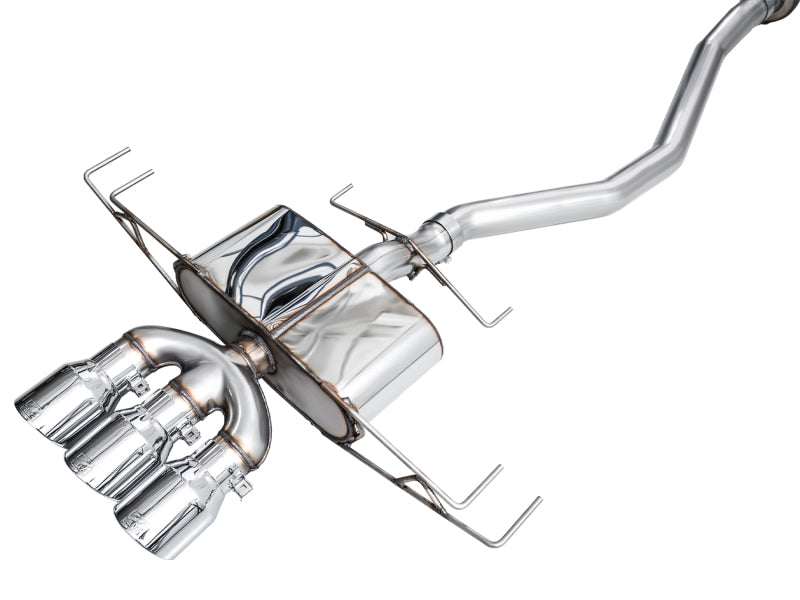

Each exhaust comes complete with three  4.5” double-walled, slash-cut tips available in chrome silver or diamond black, and feature a stamped AWE logo. All tips are individually adjustable, allowing depth into the bumper to be set according to personal taste.

What’s in the box?

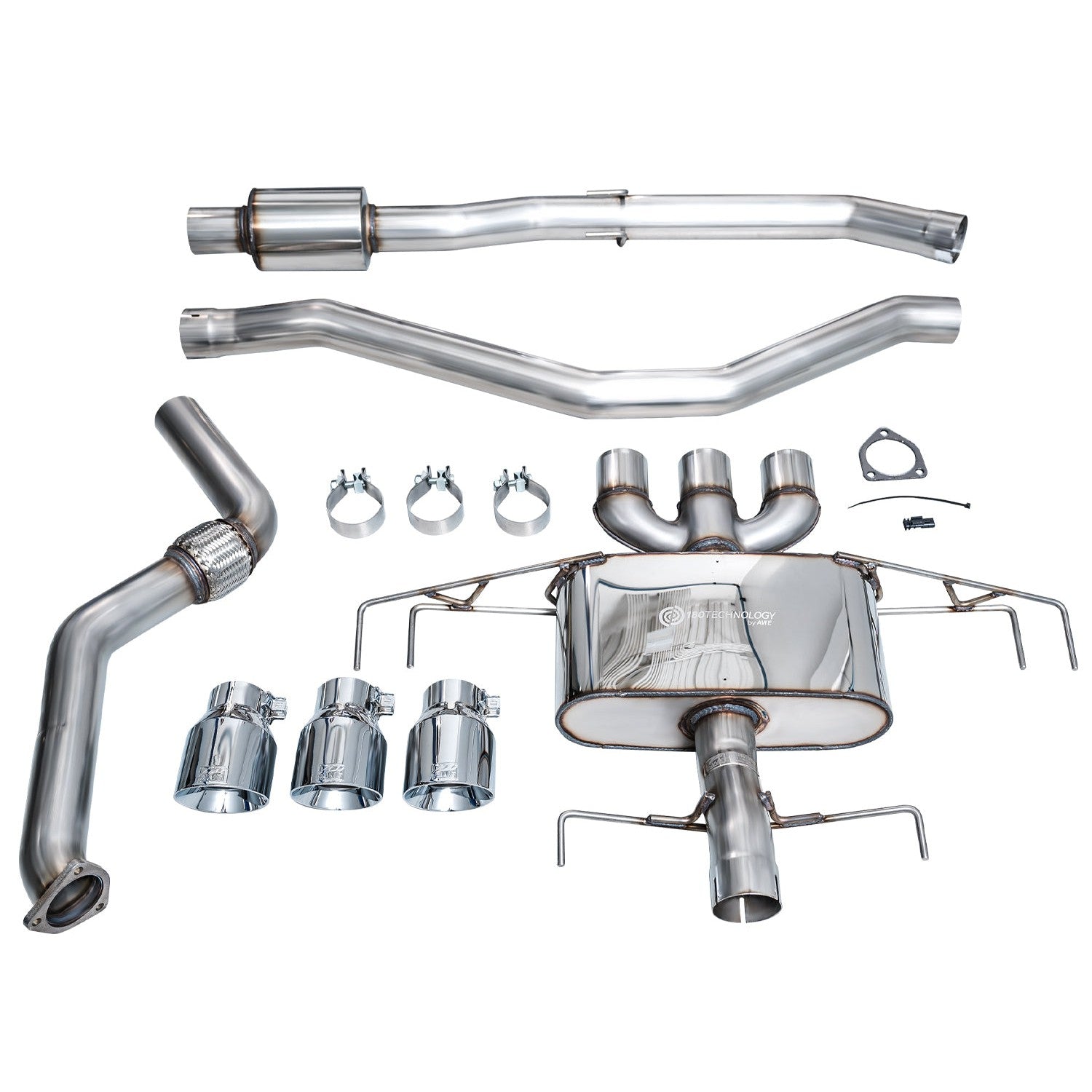

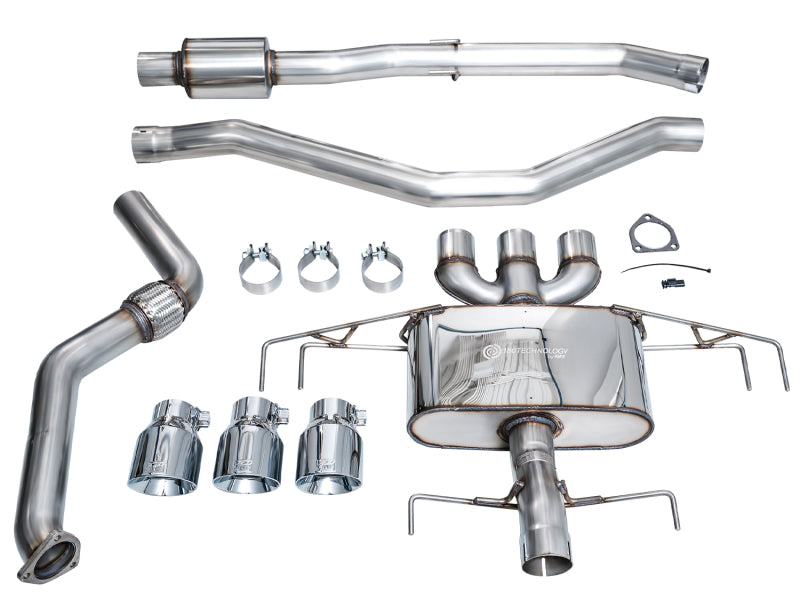

Complete AWE Touring or Track Edition Catback Exhaust, gasket, dust cover for factory valve plug, three 4.5” slash-cut double-walled tips in chosen finish,  and all necessary hardware for installation.

This Part Fits:
